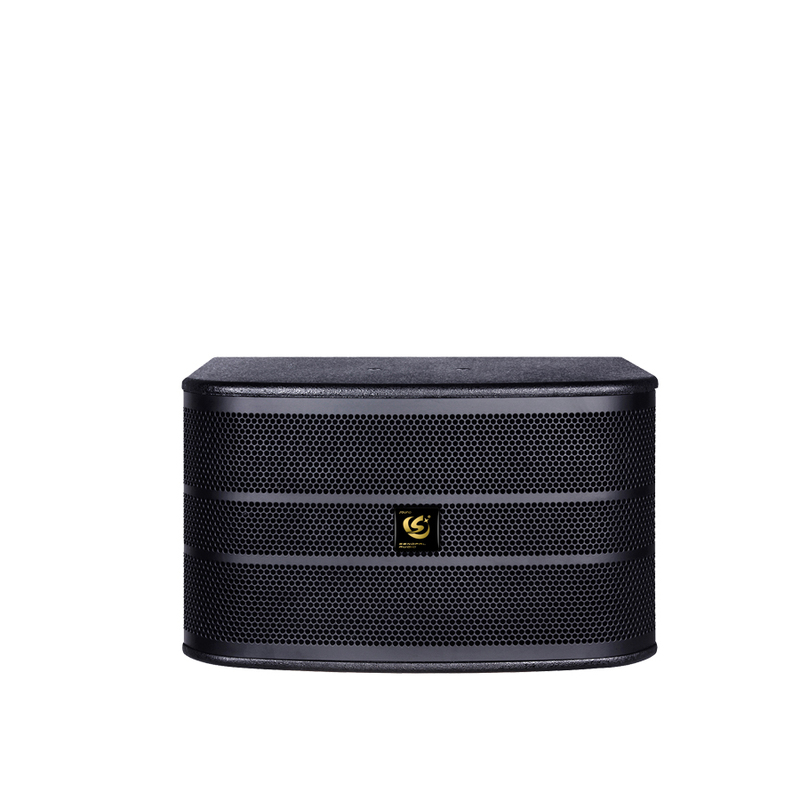

MODEL:MK-510S
MODEL:MK-510S
MODEL:MK-510S
- 产品详情
- 产品参数
功能特点/Features
MK-510S KTV包房音箱，针对量贩式KTV店、卡拉OK包房设计制作。造型独特出众，两分频3单元设计。低音强劲丰满,中高频圆润明亮，可满足多种K歌场合使用。
MK-510S KTV private room speakers are designed and manufactured for mass-market KTV stores and karaoke private rooms. Unique and outstanding shape, two frequency division 3 unit design. The bass is strong and plump, and the mid and high frequencies are round and bright, which can be used in a variety of K song occasions.
技术参数/Technlcal Parameters
| 型号 Model | MK-510S |
| 系统组成 System Type | 两分频3单元 Two division frequency 3-unit |
| 单元配置 Unit Configuration | LF10″X1+MF3″X1+HF3″X1 |
| 额定功率 Rated Power | 250W |
| 阻抗 Impedance | 8ohms |
| 最大声压级 Maximum SPL | 114dB |
| 频率响应 Frequency Response | 55Hz-20KHz |
| 灵敏度 Sensitivity | 92dB |
| 扩散角度 Diffusion Angle | 120°X90° |
| 输入连接器 Input Connector | 接线柱 Connection pillar |
| 板材材质 Enclosure Material | 中纤板（MDF） |
| 表面处理 Surface Treatment | 黑色点漆 Black spot paint |
| 吊挂硬件 Hanging Hardware | 3XM8 |
| 尺寸 Size | 295x510x310mm（HxWxD） |
结构示意图/Structure Diagram
应用场所/Application place
KTV包房/多功能厅/家庭娱乐/会议/教学
KTV room / Function room / Home entertainment / Conference / Teaching
品牌
SENDPAL
产地
广州
类型
KTV音箱
材质
中纤板喷漆
